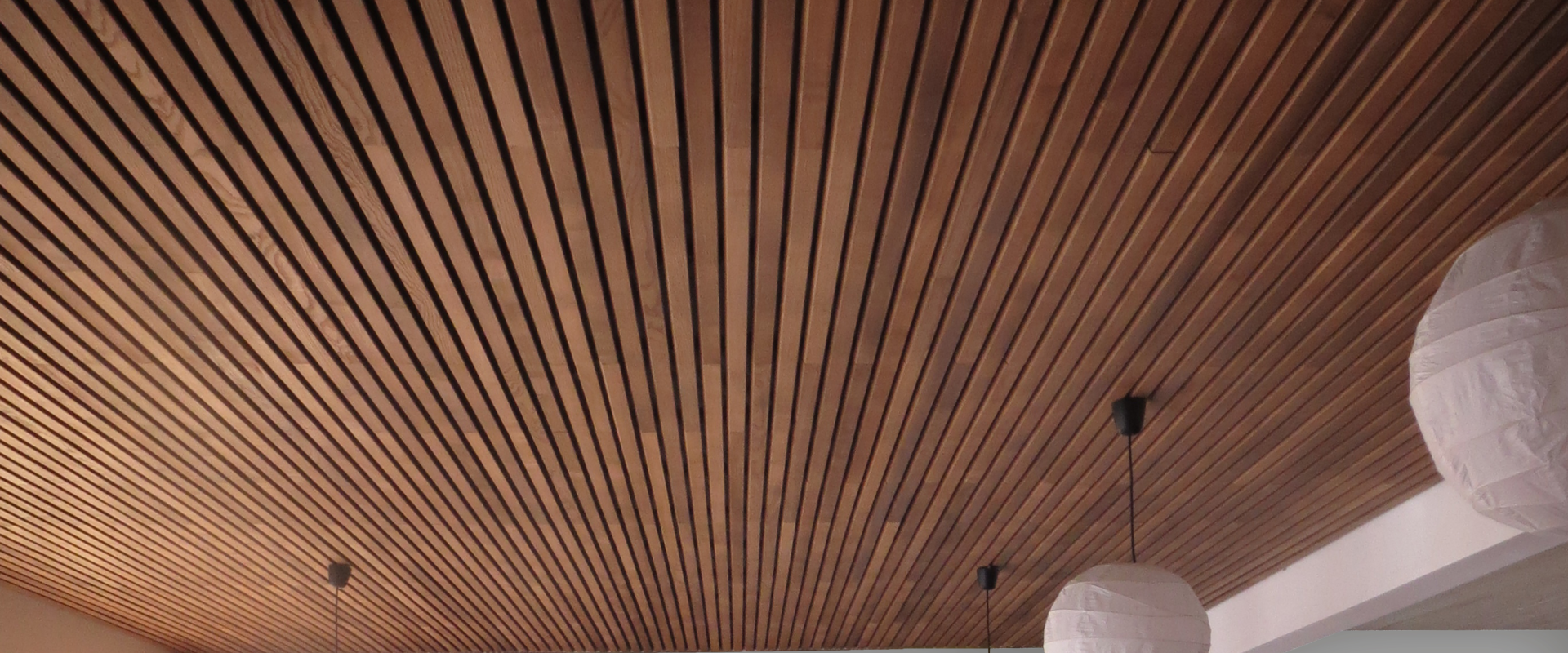

International Interior Ceiling | Imagery supplied by Grad®
What Sets the JSC Clipp® Batten System Apart?

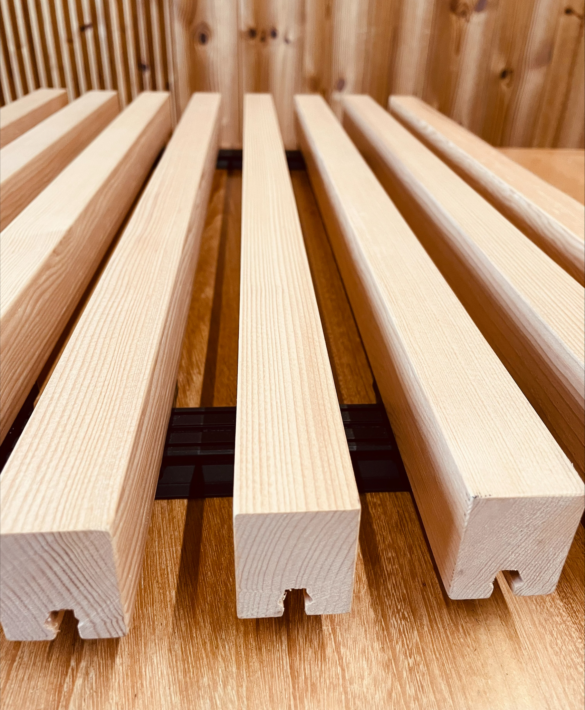

Unlike traditional installation methods, the JSC Clipp® Batten System uses the patented Grad® aluminium rail and concealed clip system, allowing individual timber battens to click into place. This reduces the need for adhesives or visible fixings on the timber face.
What makes it stand out is its ability to be easily installed, maintained, and when necessary, accessed. If services such as HVAC or cabling are concealed behind the battens, individual battens can be removed and replaced without disrupting the full wall or ceiling.
Species, Sizing, & Finishes
Design Flexibility Built In
With clip spacing options of 60mm, 80mm, or fully adjustable clip configurations, the JSC Clipp® Batten System offers design control to match project needs - all layout options are on the information sheet. Available in a curated range of sustainably sourced timber species - including Western Hemlock, Western Red Cedar, JSC TMT Range, and others, the system also supports dressed, bandsawn, or brushed finishes, and can be factory-coated.
While the JSC Clipp® Batten System is a decorative interior system and typically doesn’t require fire performance coatings - intumescent options can be discussed if your project has specific compliance needs. We recommend speaking with a JSC representative to determine the best fit for your project.
International Interior Ceiling | Imagery supplied by Grad®
Suitable Applications
Where it Works Best
Suitable for internal use, the JSC Clipp® Batten System is ideal for both residential and commercial walls and ceilings. It is compatible with timber framing, lightweight steel framing, and concrete substrates, and can also be installed on suspended ceiling systems.
While JSC also offers traditional timber battens and a variety of interior panelling options, this system is designed for projects that require repeatable detailing, clean finishes, and the ability to easily access systems behind the battens.

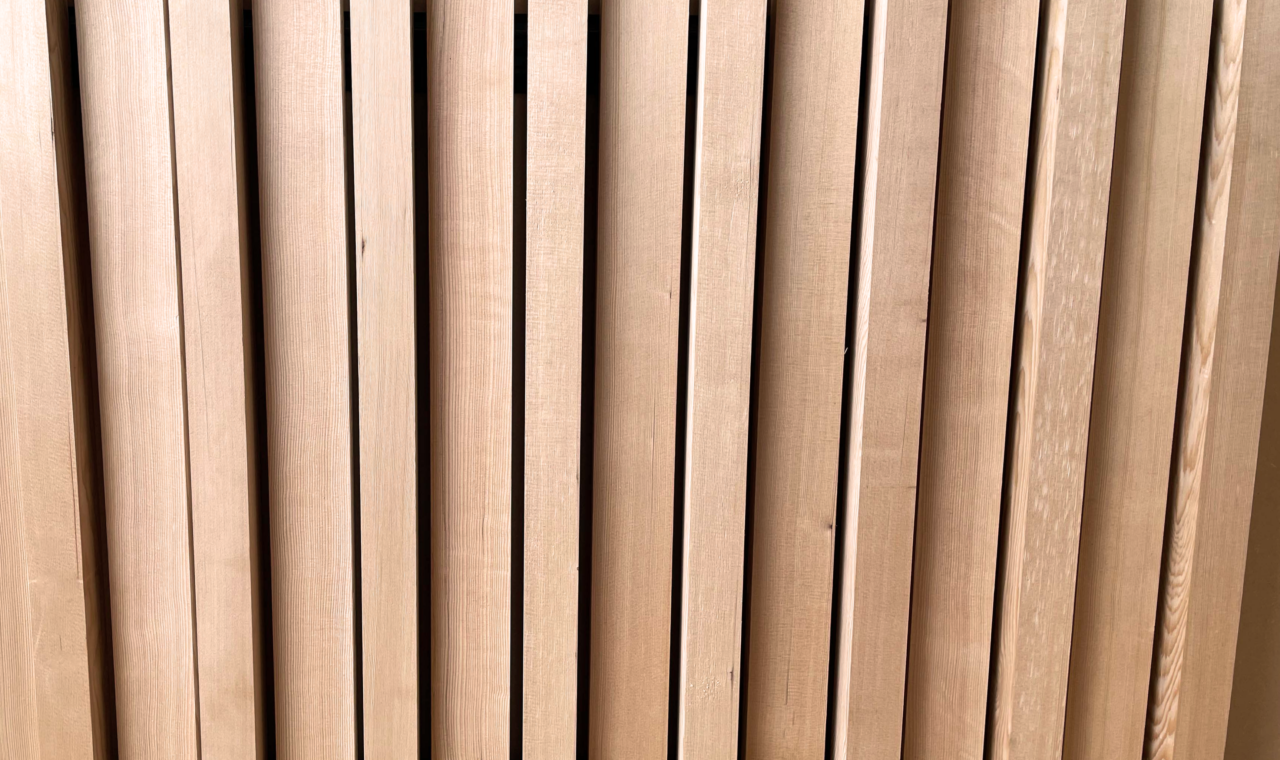

International Interior Ceiling & Wall Battens | Imagery supplied by Grad®
Environmental focus
Sustainability in Every Detail
Components of the JSC Clipp® Batten System including rails, clips, and timber battens are 100% recyclable. With profiling of the timber battens completed locally in New Zealand, the system supports efficient project delivery while upholding environmental responsibility.
Recyclable Components:
- Grad® Aluminium Rails: Made from at least 80% recycled aluminium and, which is 100% recyclable.
- Grad® Clips: Produced from polyoxymethylene (POM), an engineering-grade plastic that is 100% recyclable.
- Sustainably Sourced Timber Battens: Timber is a natural, biodegradable material that can be reused or repurposed at the end of its lifecycle..
Assistance
Need More Technical Information?
Refer to our Installation & Specification Guide for batten layout options, fixing requirements, and maintenance guidance. For further questions around acoustic performance, coating compatibility, or design integration, please visit our FAQs or contact our team.
It’s ideal for internal feature walls and ceilings in residential, commercial, hospitality, and multi-unit environments. It’s not intended for external use or high-impact zones.
JSC Clipp® is a concealed-fix batten system designed for decorative interior applications. It enables clean, uninterrupted timber lines without visible fixings on the face of the timber, delivering a refined aesthetic with easier installation.
- No visible face fixings - Clean, uninterrupted timber face
- Faster and simpler installation
- Reversible and removable battens
- Compatible with a wide range of JSC timber species and finishes
Yes. JSC Clipp® can be installed in vertical, horizontal, or ceiling applications, depending on the aesthetic intent and design requirements.
JSC Clipp® is compatible with several JSC softwoods and thermally modified timbers. Profiles and species are customisable depending on design intent. Contact us to discuss available options.
Timber battens that are clipped to an aluminium Rail. No face fixing is required. Installers should refer to the JSC Clipp® Installation Guide for full instructions.
The JSC Clipp® System is available in two spacing options:
- Pre-configured rails with 60mm or 80mm centres:
– These enable fast installation
– Battens can be removed and reinstalled using the designated Clipp® removal tool - Adjustable spacing version (customisable on site)
– Offers design flexibility
– Clips are manually fixed with screws, so battens cannot be removed using the tool
– Removal may require disassembling fixings, making it less serviceable than the pre-configured rail
We recommend choosing the configuration that aligns best with your project’s design intent and long-term serviceability requirements.
Minimal maintenance is required. Interior timber should be periodically dusted or wiped down with a dry or damp cloth. Avoid abrasive cleaners. View the JSC Clipp Installation & Specification guide for more detail.
Unlike conventional battens that rely on visible face-fixing with screws or nails, JSC Clipp® uses a concealed clip-in batten system. While some timber panelling systems also allow for hidden fixing, JSC Clipp® is purpose-designed for batten features, enabling easy removal and replacement of individual battens without disrupting the overall installation. This makes it ideal for applications where clean aesthetics and future accessibility are important.
In most cases, JSC Clipp® is best suited to flat surfaces. For curves or non-standard applications, speak to a JSC representative to explore alternative solutions from our timber panelling or batten range.
JSC offers clear and colour-coated finishes compatible with the timber battens in the system. Visit our Coatings Page to explore available tones and discuss custom options with our team.
JSC Clipp is a decorative system and is not typically subject to fire performance compliance. Where required, intumescent coatings can be specified to assist with compliance. For advice, please get in touch.
Yes, JSC Clipp® battens may be coated with approved intumescent finishes where project-specific fire requirements exist. Ensure the coating is tested on the intended timber species and finish, and applied per manufacturer specifications.
