Horizontal Rusticated
Beautiful profiles in a smooth, horizontal finish. Experience timeless charm of rusticated weatherboards - a traditional and popular exterior finish that never goes out of style. The distinctive horizontal lines deliver a subtle look, creating a visual effect that will enhance any architectural style from heritage homes to modern designs. These are available in a wide range of widths, depths, and timber species to suit any project or style.
Available Species
Scope of Use
JSC RustiClad Horizontal Rusticated Shiplap Weatherboard Cladding System installation to be completed as per JSC RustiClad technical literature, within the scope of JSC RustiClad CodeMark Certificate CMNZ30081.

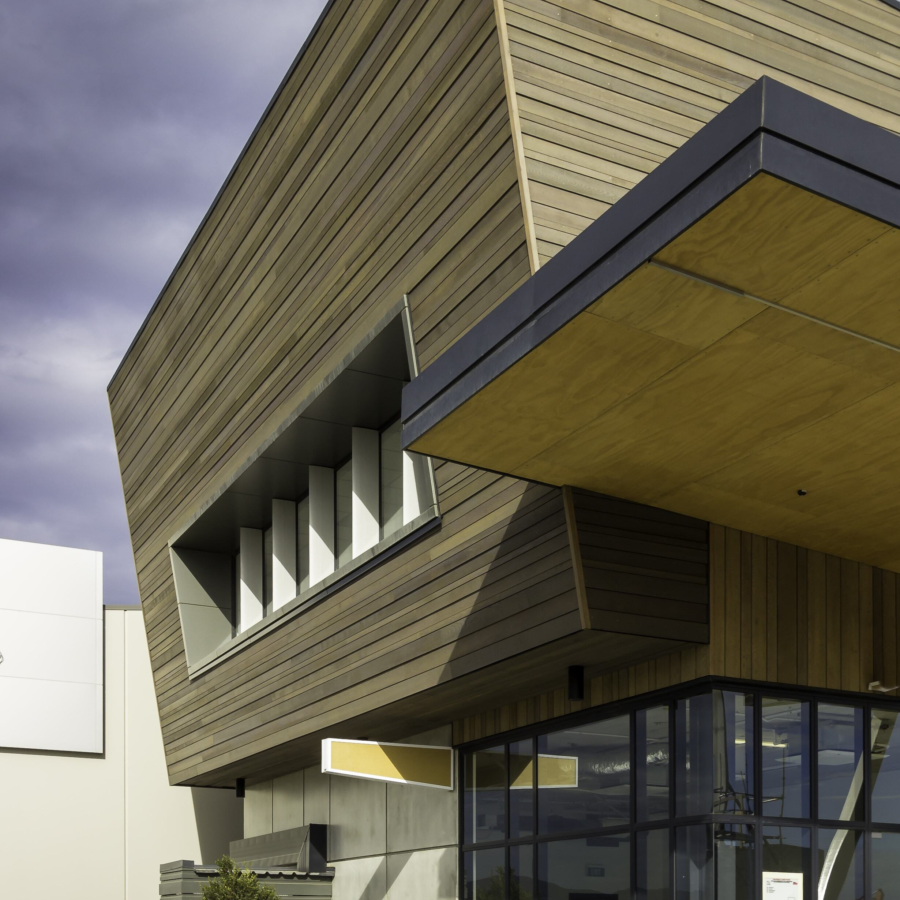

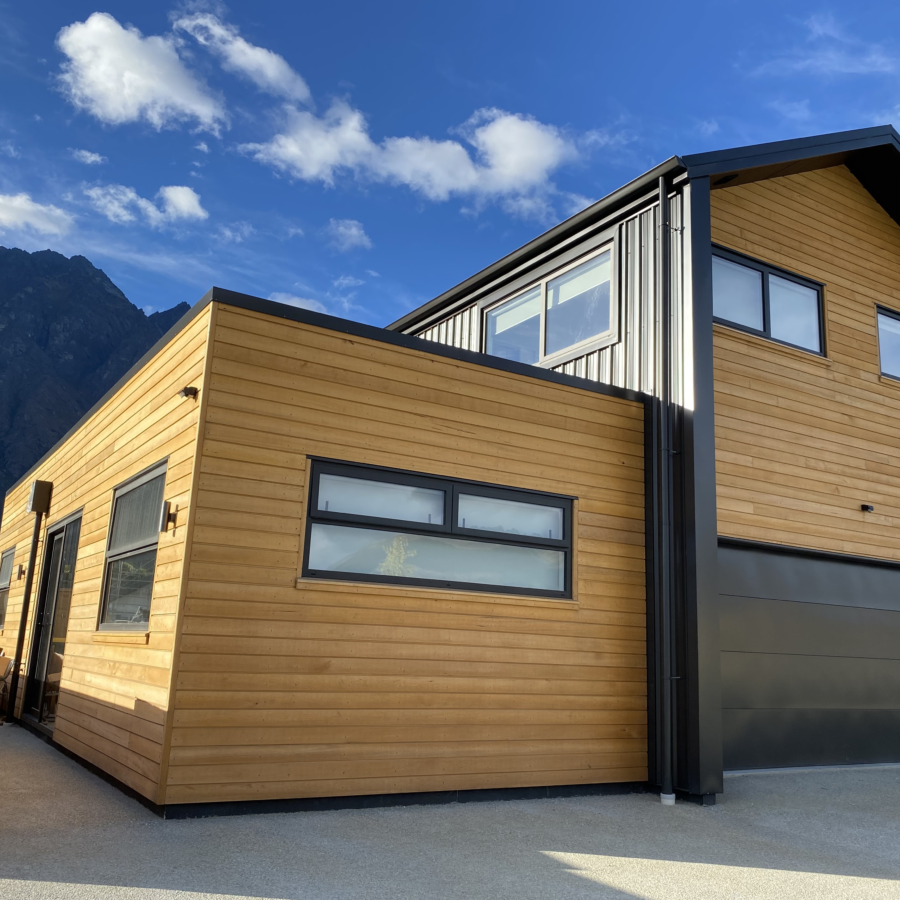

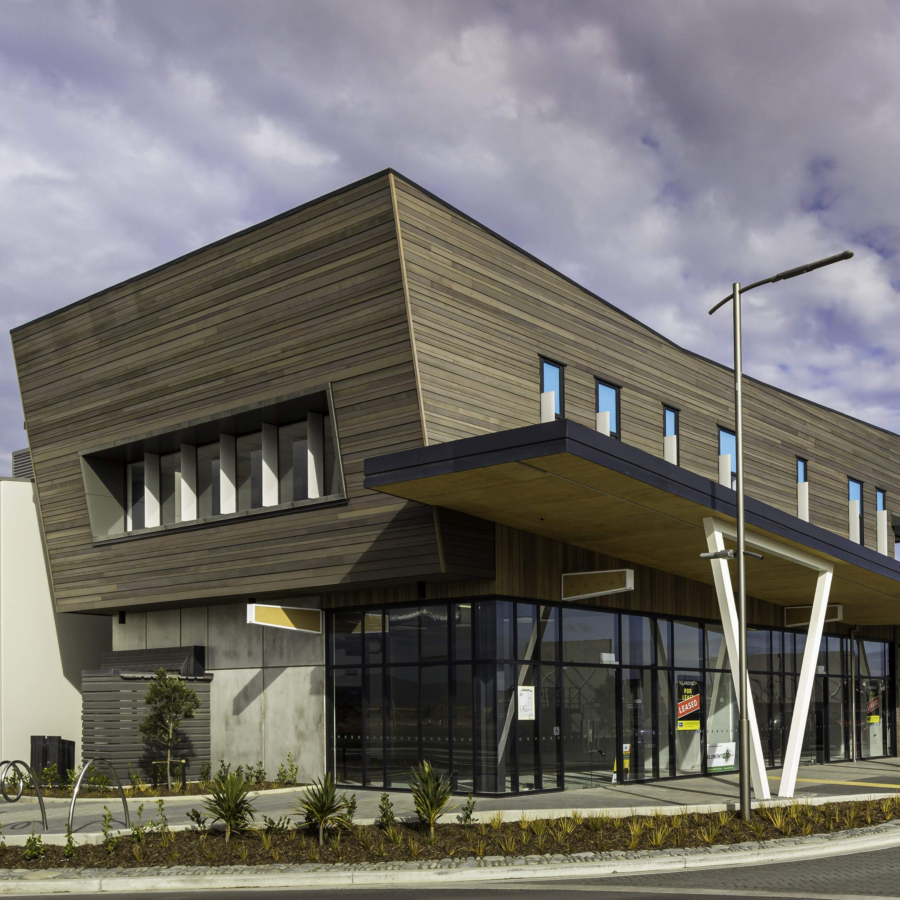

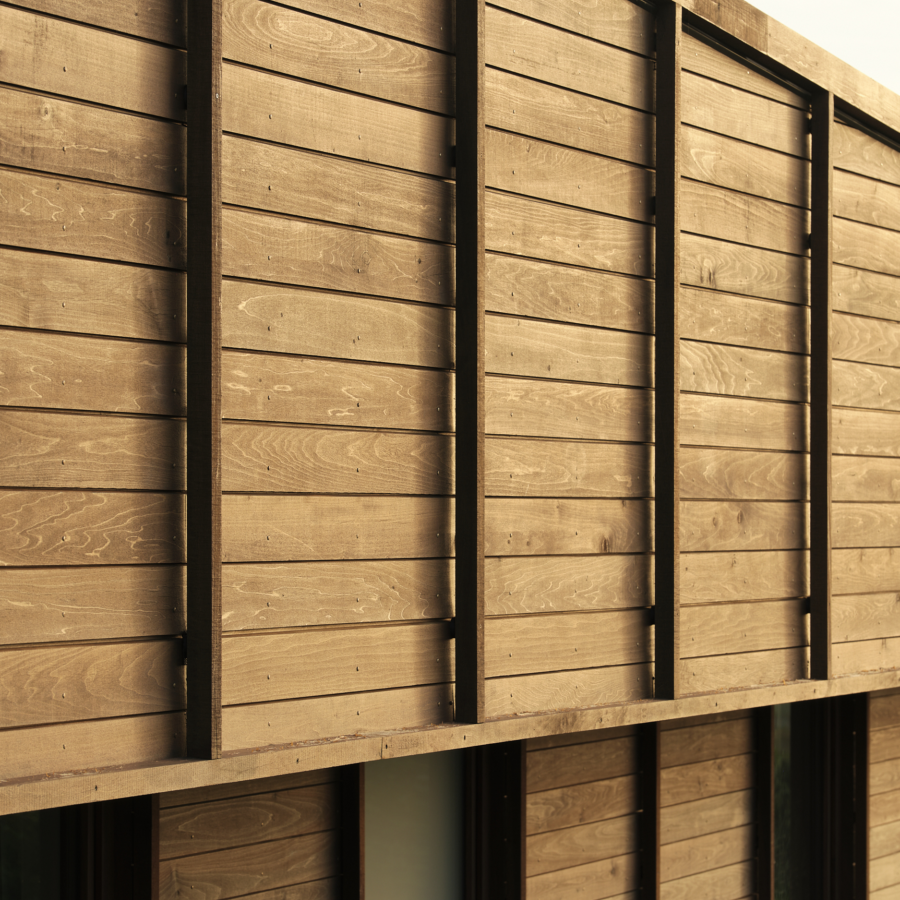

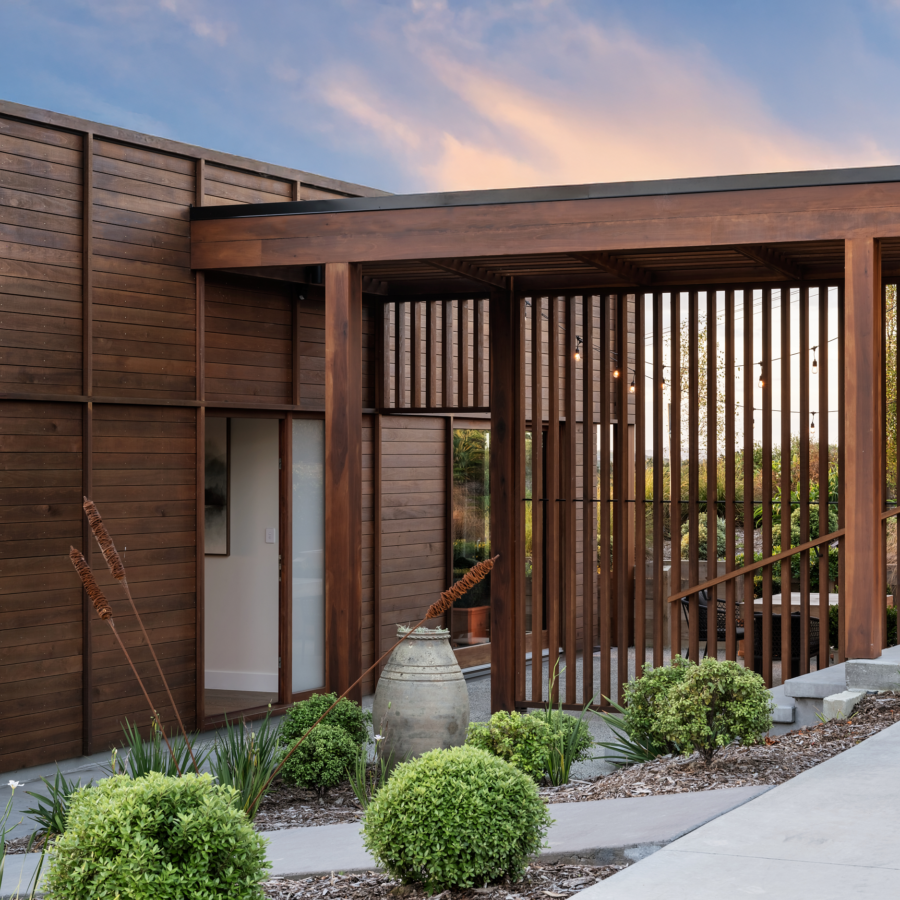

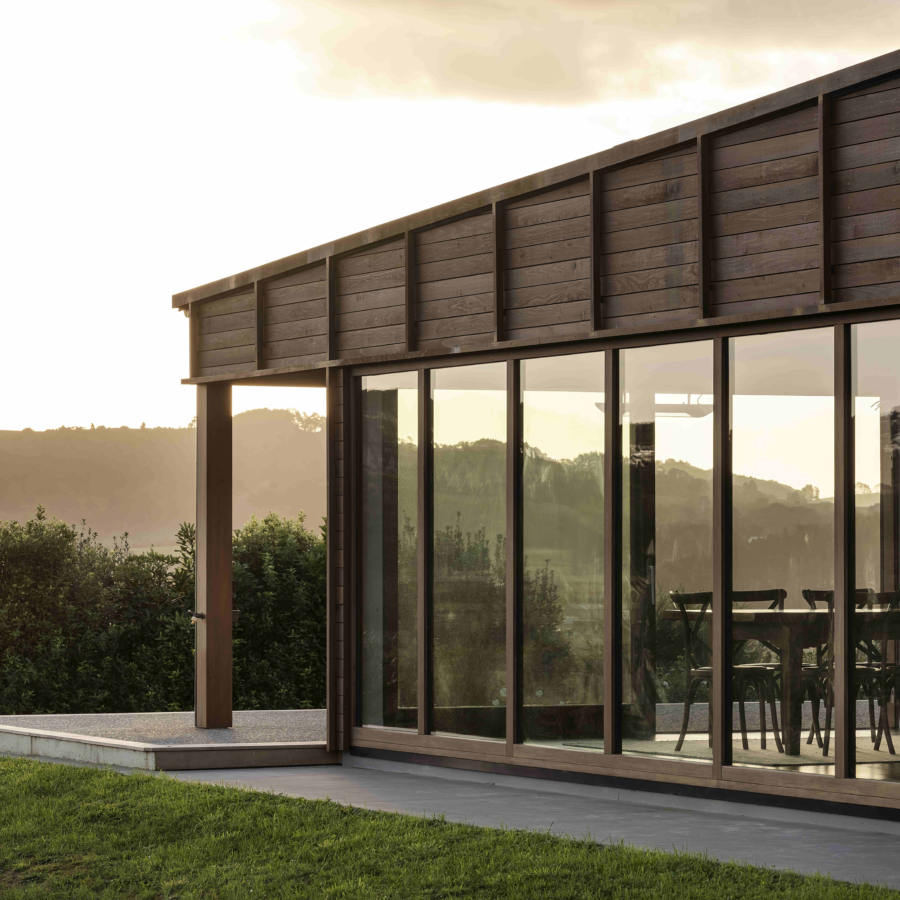

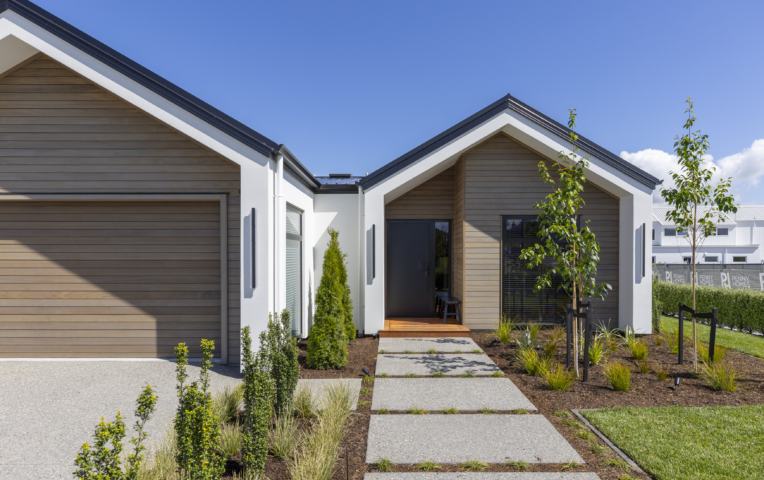

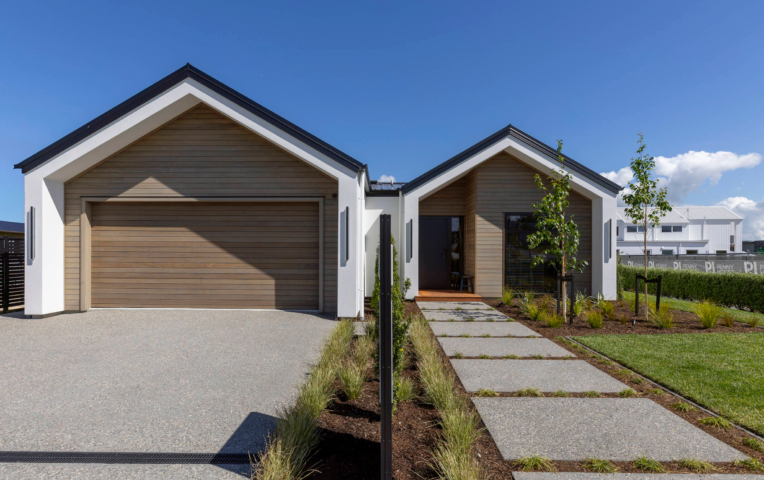

Our Projects
The solution for your project
JSC RustiClad: Horizontal Rusticated Weatherboard Cladding System
RustiClad is a cavity-based system that uses horizontal shiplap weatherboards to create a timeless style. The Rusticated weatherboards fit into the JSC RustiClad Cladding System, which is a collection of different horizontal weatherboard profile types. JSC RustiClad Cladding System offers an enhanced and impactful exterior solution.
The cavity-based exterior wall cladding system comprises of:
- Horizontally fixed JSC Horizontal Rusticated Weatherboards
- H3.2 treated timber castellated structural or non-structural cavity battens
- Fixings
- Coating systems
- Flashings and accessories
Key Benefits of using JSC RustiClad Horizontal Weatherboard Cladding System
- Fully tested and CodeMark certified for both flexible and rigid wall underlay options.
- Available in a range of profiles, species, and finishes to cater all design requirements.
- Random width & random width-depth profile options available
- In-house factory coating system.
Let us help you with your specification
We've had a longstanding relationship with Masterspec and have been members of Smartspec since its inception in 2012.
Please contact our Architectural business support team for assistance with project-specific specifications.
Technical
Species |
Area of Use |
Attributes |
Supplier Responsibility |
|
---|---|---|---|---|

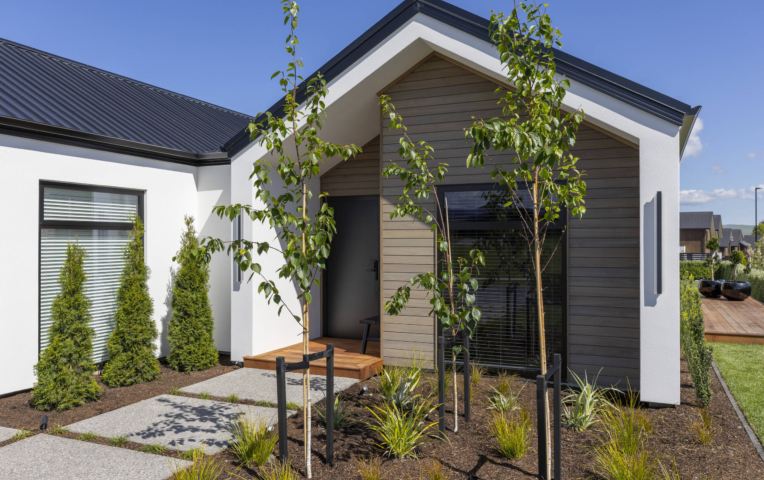

TMT AmbaLearn more |
Interior use Exterior use | Thermally Modified Uniform Colour Light Weight Clearer Grade Accepts Dark Coatings Naturally Stable Naturally Durable | ||
TMT Taxon (Tulipwood)Learn more |
Exterior use Interior use | Thermally Modified Naturally Stable Naturally Durable Clearer Grade Multipurpose use Accepts Dark Coatings | ||
TMT Taiga (Lunawood)Learn more |
Exterior use Interior use | Thermally Modified Naturally Durable Naturally Stable Feature Grade Multipurpose use Accepts Dark Coatings | ||
MicroPro® Treated Radiata PineLearn more |
Interior use Exterior use | Sustainably Sourced NZ grown Easily Worked Premium Radiata #1 Clears Codemark Certified | NZ Grown | |
Western Red CedarLearn more |
Interior use Exterior use | Naturally Durable Clearer Grade Multipurpose use Naturally Stable Natural Thermal Insulator Hidden Fix Options Available | ||
Alaskan Yellow CedarLearn more |
Interior use Exterior use | Naturally Durable Clearer Grade Hidden Fix Options Available Uniform Colour Multipurpose use | ||
MicroPro® Treated Nordic PineLearn more |
Interior use Exterior use | Feature Grade Light Colour Tone Premium Grade Codemark Certified Consistent colour & texture Durable softwood Knotty | ||
Rustic CedarLearn more |
Interior use Exterior use | Feature Grade Naturally Durable Natural Thermal Insulator Easily Worked | ||
IrokoLearn more |
Interior use Exterior use | Sustainably Sourced Naturally Stable Naturally Durable | VLO FSC® | |
TMT TuscanLearn more |
Interior use Exterior use | Thermally Modified Uniform Colour Light Weight Clearer Grade Accepts Dark Coatings Naturally Stable Naturally Durable |
Profile |
Effective Cover |
Thickness |
Species |
|
---|---|---|---|---|
APJ241-22Learn more |
60mm | 22mm | Alaskan Yellow Cedar Rustic Cedar MicroPro® Treated Nordic Pine | |
APJ241-28Learn more |
57mm | 28mm | Western Red Cedar | |
APJ261-22Learn more |
110mm | 22mm | Alaskan Yellow Cedar Rustic Cedar MicroPro® Treated Nordic Pine | |
APJ281-22Learn more |
160mm | 22mm | Rustic Cedar MicroPro® Treated Nordic Pine Alaskan Yellow Cedar | |
J67-22Learn more |
110mm | 22mm | Alaskan Yellow Cedar MicroPro® Treated Nordic Pine Rustic Cedar | |
J68-22Learn more |
165mm | 22mm | Alaskan Yellow Cedar Rustic Cedar MicroPro® Treated Nordic Pine | |
APJ282-22Learn more |
157mm | 22mm | Rustic Cedar MicroPro® Treated Radiata Pine Alaskan Yellow Cedar | |
APJ262-22Learn more |
110mm | 22mm | Alaskan Yellow Cedar Rustic Cedar MicroPro® Treated Nordic Pine | |
APJ261-28Learn more |
107mm | 28mm | Western Red Cedar | |
APJ281-28Learn more |
157mm | 28mm | Western Red Cedar | |
APJ721Learn more |
117mm | 20mm | MicroPro® Treated Radiata Pine | |
APJ722Learn more |
162mm | 20mm | MicroPro® Treated Radiata Pine | |
APJ723Learn more |
117mm | 20mm | MicroPro® Treated Radiata Pine | |
APJ724Learn more |
162mm | 20mm | MicroPro® Treated Radiata Pine | |
TMT524Learn more |
62mm | 18.5mm | TMT Tuscan TMT Taxon (Tulipwood) TMT Taiga (Lunawood) | |
TMT526Learn more |
107mm | 18.5mm | TMT Tuscan TMT Taxon (Tulipwood) TMT Taiga (Lunawood) | |
TMT528Learn more |
157mm | 18.5mm | TMT Tuscan TMT Taxon (Tulipwood) | |
J67Learn more |
110mm | 18.5mm | Western Red Cedar Iroko | |
J68Learn more |
165mm | 18.5mm | Western Red Cedar Iroko | |
APJ212Learn more |
160mm | 18.5mm | Western Red Cedar | |
APJ241Learn more |
62mm | 18.5mm | Western Red Cedar Iroko | |
APJ261Learn more |
112mm | 18.5mm | Western Red Cedar Iroko | |
APJ262Learn more |
112mm | 18.5mm | Western Red Cedar Iroko | |
APJ281Learn more |
162mm | 18.5mm | Western Red Cedar | |
APJ282Learn more |
162mm | 18.5mm | Western Red Cedar |
