JSC Clipp® Batten System
Smarter Internal Timber Battens - Fast, Flexible, and Finished Right
The JSC Clipp® Batten System is a clever, concealed-fix batten solution designed for internal decorative timber applications across walls and ceilings. Developed with architects, installers, and builders in mind, it provides a cleaner, faster way to achieve striking timber batten designs with no visible fixings on the timber face.
Available Species
Scope of Use
The JSC Clipp® Batten System is designed for internal applications only, across both residential and commercial settings. Suitable for walls and ceilings (including suspended ceilings), it can be installed vertically or horizontally to create refined, decorative timber features.
- Maximum recommended wall and ceiling height: 4 metres
- The system is intended for non-loadbearing use - decorative only
- Ideal for delivering a natural timber aesthetic with faster, smarter installation compared to traditional fixing methods
JSC Clipp® Batten System Features
Why Choose JSC Clipp® Batten System?
With 125 years of supplying premium timber solutions to New Zealand’s architects and builders, JSC is proud to offer systems like JSC Clipp that simplify the install process while delivering timeless and flexible timber design outcomes.
- Smarter Installation - Reduce time and simplify the install process with a reliable clip-in system that is ideal for both residential and commercial interiors. This system remains manageable and convenient to work with, even in challenging install applications.
- No Visible Face Fixings - Unlike traditional timber battens, the JSC Clipp system allows for a clean architectural finish with no fixings on the visible timber surface.
- Freedom to Design - Choose from multiple layout options within the 60mm and 80mm pre-configured rail systems, or opt for adjustable clips to create a fully customised design. Select your preferred timber species, finishes, and coatings, and install battens vertically, horizontally, or across ceilings with ease.
- Removable & Replaceable - Battens can be unclipped individually post-install, making them ideal for access panels, services, or ongoing maintenance.
How Does the JSC Clipp Batten System Work?

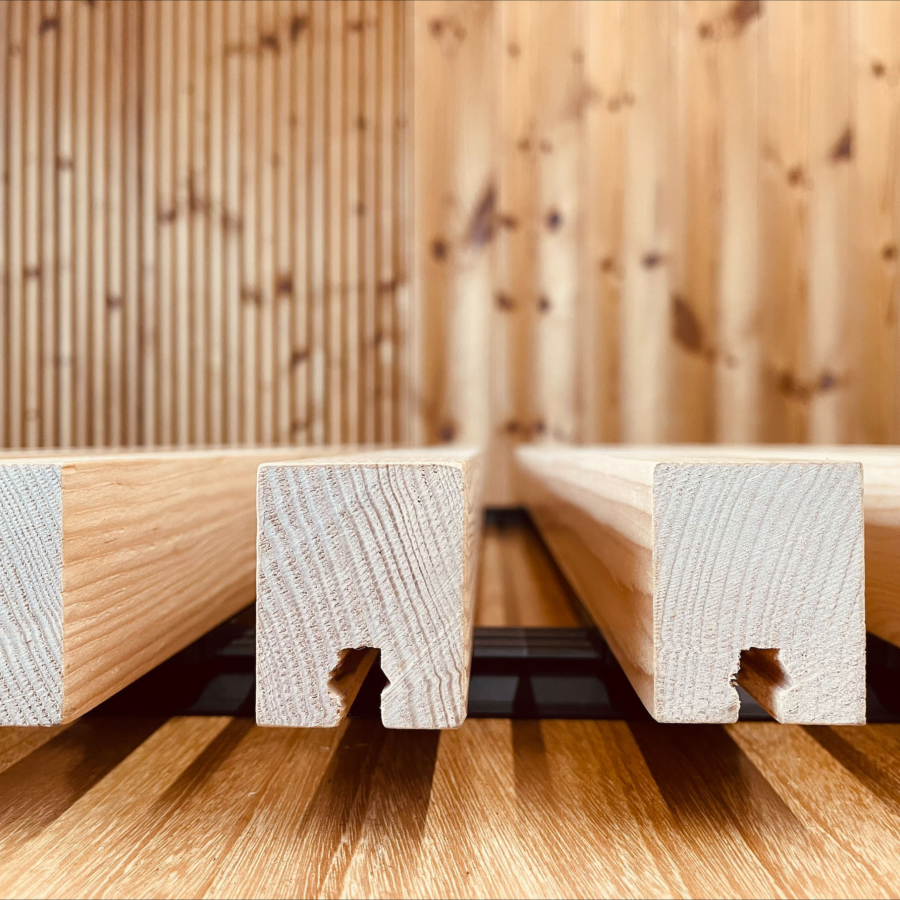

A powder-coated aluminium track is screw-fixed to the substrate, and each timber batten clips securely into place with custom-designed bracketry. The clip spacing, bracket style, and layout are determined during specification, giving you full design control with minimal visual interruption.
Note: Fixings may still be visible depending on batten design or spacing so speak to our team about your design intent to ensure the best outcome.
Customisation
Available in 3 configurations:
- 3960mm Rail with 66 pre-fixed clips at 60mm centres
- 3920mm Rail with 49 pre-fixed clips at 80mm centres
- 3960mm Rail with no pre-attached clips – Clips can be manually positioned where required (Adjustable clips)
Finishes & Coatings
- Finishes - Depending on the species and application requirements, timber battens can be provided dressed, bandsawn, and brushed finished.
- Coating options - Clear and colour coating options are available. Visit our coatings page for coatings options.
Specification Support
We’ve made specification simple. Download our detailed Installation & Specification Guide or speak with our Architectural Team to get started.
For further details and to explore our full range of timber products contact our sales team.
Notes
The JSC Clipp® Batten System combines Grad® clip components with locally profiled timber battens by JSC for a complete, high-performance interior solution.
Technical
Species |
Area of Use |
Attributes |
Supplier Responsibility |
|
|---|---|---|---|---|
|
TMT AmbaLearn more |
Interior use Exterior use | Naturally Stable Naturally Durable | FSC® |
|
TMT Taxon (Tulipwood)Learn more |
Exterior use Interior use | Naturally Stable Naturally Durable | |
|
TMT Taiga (Lunawood)Learn more |
Exterior use Interior use | Naturally Durable Naturally Stable | |
|
Western HemlockLearn more |
Interior use | Sustainably Sourced Longer Lengths Uniform Colour Clearer Grade Hidden Fix Options Available Light Weight | |
|
Western Red CedarLearn more |
Interior use Exterior use | Naturally Durable Clearer Grade Multipurpose use Naturally Stable Natural Thermal Insulator Hidden Fix Options Available | 100% PEFC Certified (PEFC/40-31-43) |
|
Nordic PineLearn more |
Interior use | Feature Grade Light Colour Tone Premium Grade Knotty | |
|
ThermoPine®Learn more |
Interior use | Naturally Stable |
FAQ
Frequently Asked Questions
Get answers to common questions about JSC Clipp Batten Syste,.
It’s ideal for internal feature walls and ceilings in residential, commercial, hospitality, and multi-unit environments. It’s not intended for external use or high-impact zones.
JSC Clipp® is a concealed-fix batten system designed for decorative interior applications. It enables clean, uninterrupted timber lines without visible fixings on the face of the timber, delivering a refined aesthetic with easier installation.
- No visible face fixings - Clean, uninterrupted timber face
- Faster and simpler installation
- Reversible and removable battens
- Compatible with a wide range of JSC timber species and finishes
JSC Clipp® is compatible with several JSC softwoods and thermally modified timbers. Profiles and species are customisable depending on design intent. Contact us to discuss available options.
Timber battens that are clipped to an aluminium Rail. No face fixing is required. Installers should refer to the JSC Clipp® Installation Guide for full instructions.
Minimal maintenance is required. Interior timber should be periodically dusted or wiped down with a dry or damp cloth. Avoid abrasive cleaners. View the JSC Clipp Installation & Specification guide for more detail.
Unlike conventional battens that rely on visible face-fixing with screws or nails, JSC Clipp® uses a concealed clip-in batten system. While some timber panelling systems also allow for hidden fixing, JSC Clipp® is purpose-designed for batten features, enabling easy removal and replacement of individual battens without disrupting the overall installation. This makes it ideal for applications where clean aesthetics and future accessibility are important.
In most cases, JSC Clipp® is best suited to flat surfaces. For curves or non-standard applications, speak to a JSC representative to explore alternative solutions from our timber panelling or batten range.
JSC offers clear and colour-coated finishes compatible with the timber battens in the system. Visit our Coatings Page to explore available tones and discuss custom options with our team.
Yes. JSC Clipp® can be installed in vertical, horizontal, or ceiling applications, depending on the aesthetic intent and design requirements.
JSC Clipp is a decorative system and is not typically subject to fire performance compliance. Where required, intumescent coatings can be specified to assist with compliance. For advice, please get in touch.
The JSC Clipp® System is available in two spacing options:
- Pre-configured rails with 60mm or 80mm centres:
– These enable fast installation
– Battens can be removed and reinstalled using the designated Clipp® removal tool - Adjustable spacing version (customisable on site)
– Offers design flexibility
– Clips are manually fixed with screws, so battens cannot be removed using the tool
– Removal may require disassembling fixings, making it less serviceable than the pre-configured rail
We recommend choosing the configuration that aligns best with your project’s design intent and long-term serviceability requirements.
Yes, JSC Clipp® battens may be coated with approved intumescent finishes where project-specific fire requirements exist. Ensure the coating is tested on the intended timber species and finish, and applied per manufacturer specifications.
